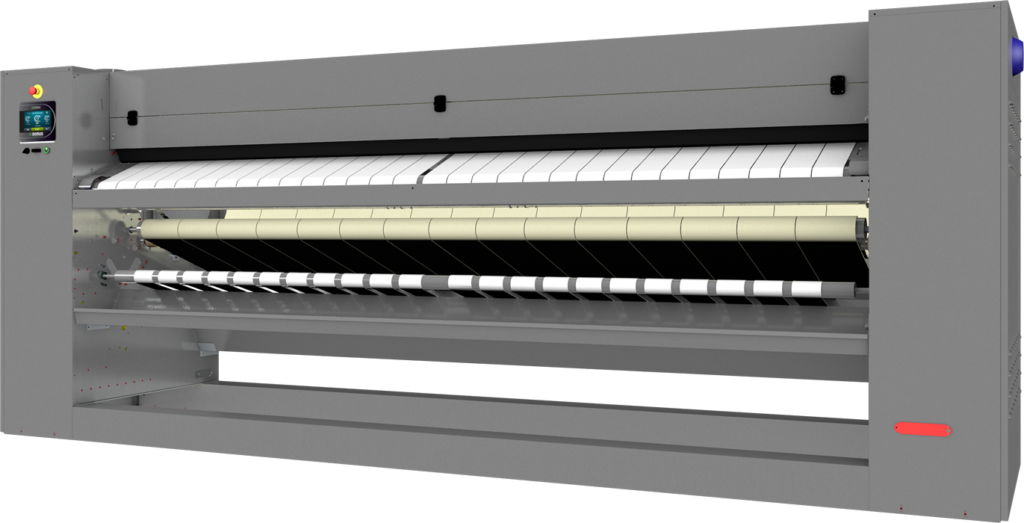

Wall flatwork ironers

TOUCH II

7” touch screen fully programmable.
37 available languages, 5 preset programs.
USB connection. Free Software online for programming, telemetry, data analysis.
IoT – DOMUSCONNECT standard.
Reversing roll as standard.

EFFICIENCY

Good heat conduction thanks to the roll material and thickness: greater control of energy expenditure.
Automatic shutdown at 80°C (adjustable parameter).
Fumes circulation circuit from the bottom reducing energy consumption.
Model with radiant gas burners: +25% productive.
EFFICIENT IRON: automatic regulation of ironing speed according to residual moisture as standard.
OPTIMAL FEEDING: high production system, ironing speed up to 15 m/min as standard.

ROBUSTESSE

Roll driving by speed inverter.
Nomex quality ironing belts: high temperatures resistant.
Panels in skinplate and stainless steel.
Nickel plate roll as option: anticorrosive, more durable.

ERGONOMICS

Acoustic comfort: <65 dB.
Appropriate operating height: 1120 mm feeding belts.
Compact dimensions.

MAINTENANCE

Easy access to all components on both sides of the machine.
Complete technical menu: statistics, autotest, data recovery for technician and maintenance.
Remote communication: faster intervention.

OTHERS

Dries and irons flat linen from a high spin washer extractor in a single operation.

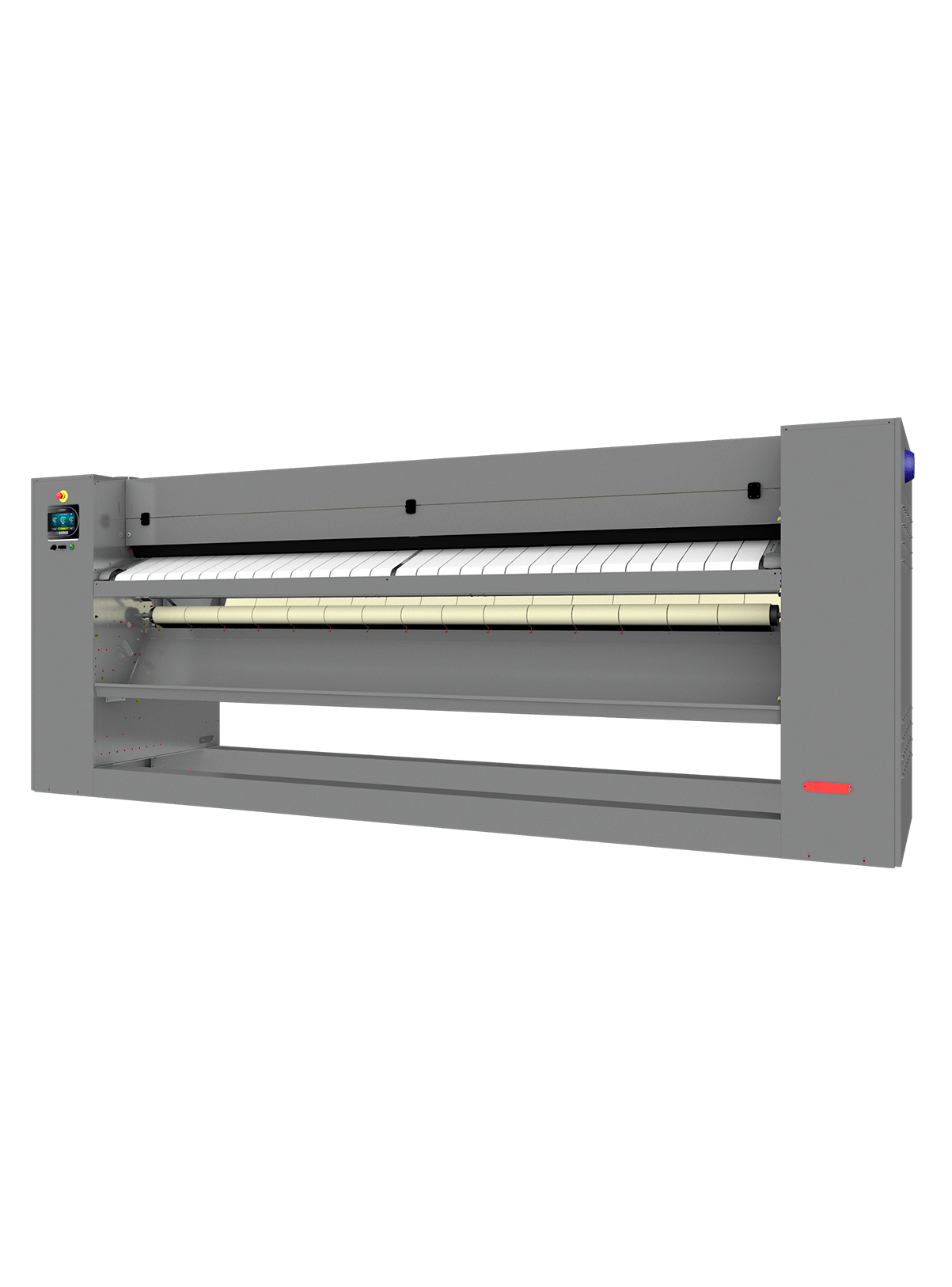

Front feeding and return.
Built-in cool down system.
Polished steel roll ø 650 mm.
Roll length: 2000, 2600 and 3300 mm.
Electric, radiant gas and steam heating.
CE standard

OPTIONS

• Nickel plate roll.

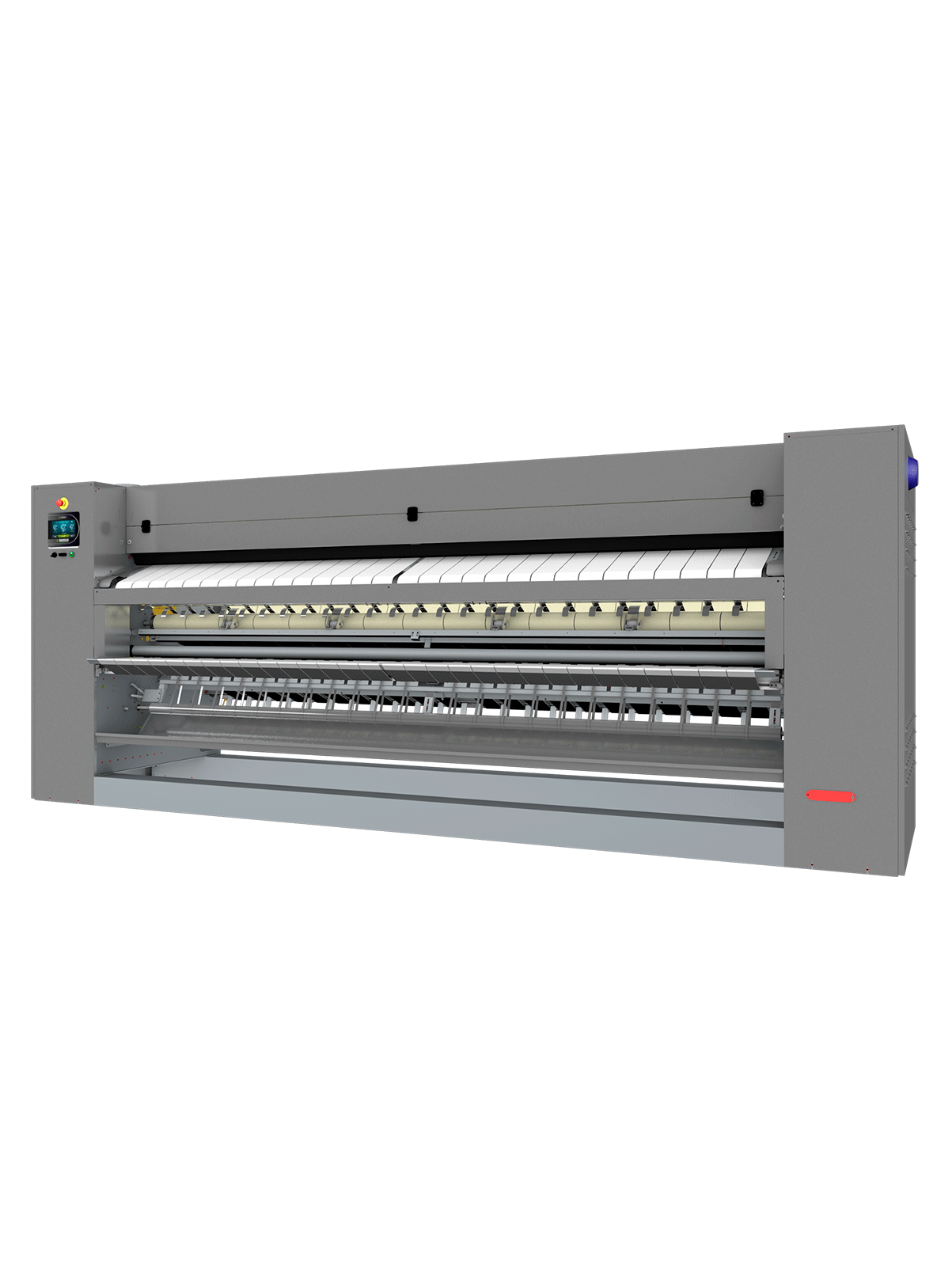

• Built-in lengthwise folder.

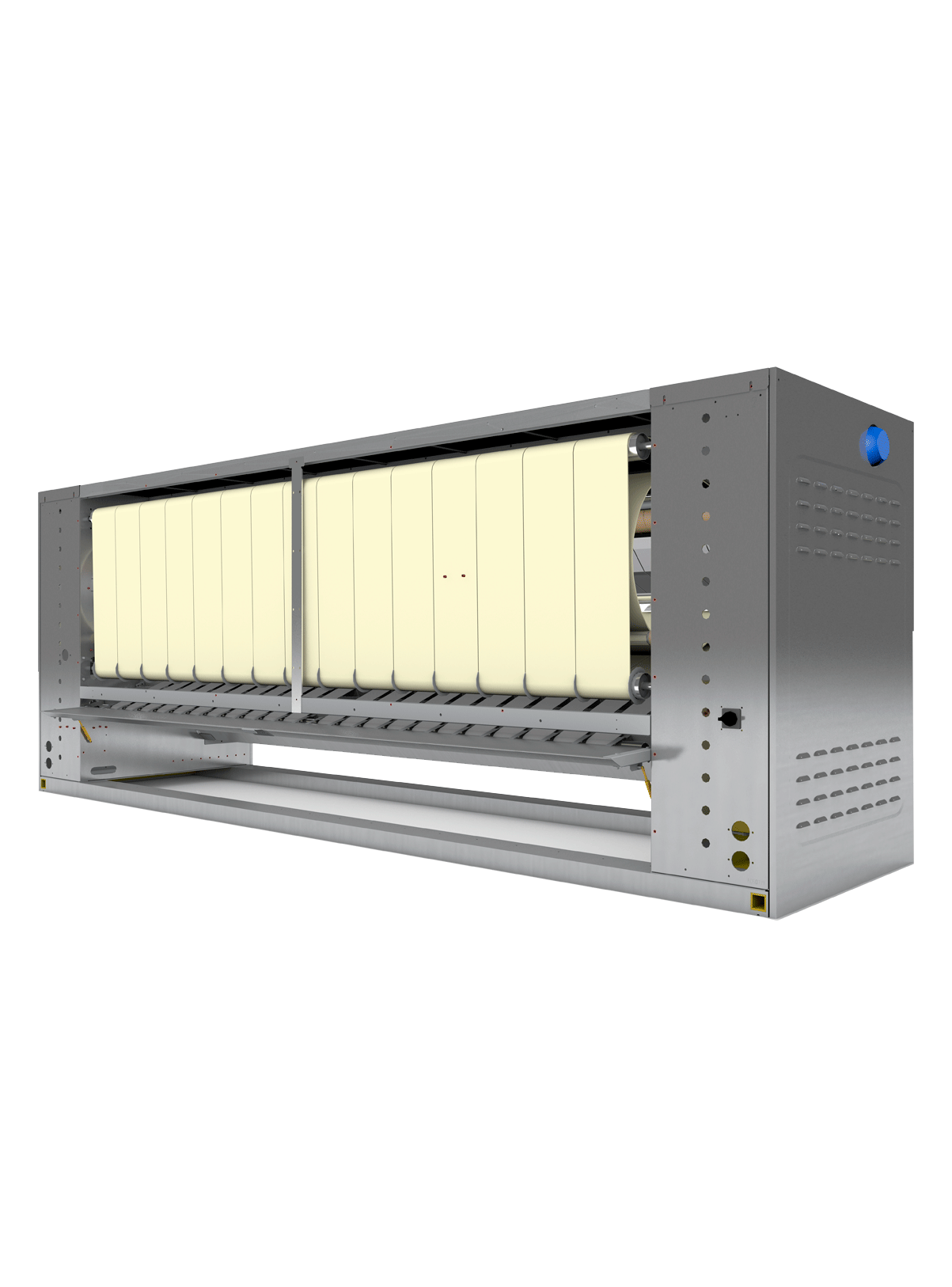

• Rear exit (only with folder).
• Cross folder + stacker (only with folder).
• NEW antistatic belts (+ bar with folder).
• Maritime wooden packing.
• Marine tension 440V III 60Hz No N (electric models).
• Tension 230V III 50/60Hz.
