An ozone cabinet specially designed to deodorise and sanitise clothing, materials and accessories

An ozone cabinet specially designed to deodorise and sanitise clothing, materials and accessories

Ozone cabinet for disinfecting clothing

How does an ozone cabinet for disinfecting clothing will help you?

Ozone is a colourless or pale blue gas that has very important disinfectant properties. It is a powerful oxidant with many industrial uses. Its two main functions are microbicides and deodorizers, as the gas is able to sanitize clothing and accessories in a natural way, without the need for chemical products of any kind.

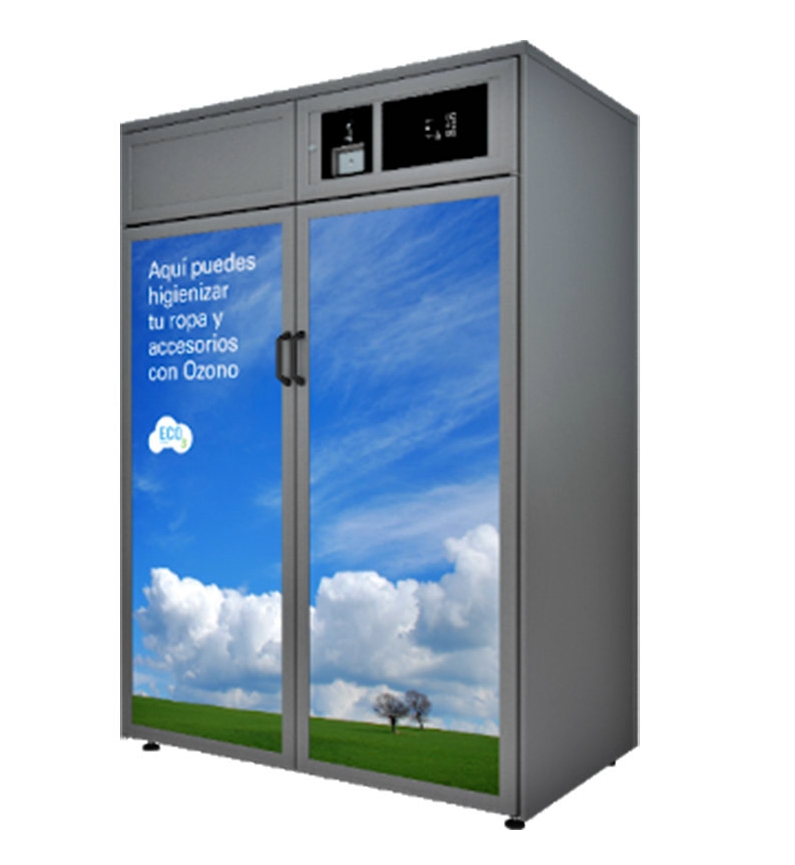

At Domus we have developed an ozone cabinet to disinfect clothes called ECO_3. It is aimed at industrial launderettes and is capable of eliminating bad odours from clothes, such as tobacco, smoke from a fire, sweat, urine, the smell of domestic animals, mould, the typical smells of a kitchen, and those of a painting company. Its range of applications is very broad and varied.

What kinds of items can our ozone cabinet treat to disinfect clothes?

This ozone cabinet for disinfecting clothing has been designed for all types of clothes items. It is suitable for:

  • Helmets, jumpsuits and jackets
  • Shoes and boots
  • Hats and caps
  • Bags, stuffed animals and toys
  • Bedspreads, pillows and curtains
  • Pet beds and blankets
  • Very delicate and intricate suits and garments that cannot be washed with water or dry-cleaned
  • Items that cannot be ironed

All these items and possibilities mean we can guarantee that our ozone cabinet is ideal for self-service launderettes, hotels, dry cleaners, theatres, fire stations, health centres, gyms etc…

Ozone cabinet models for clothes available in our catalogue

Our laundry machines catalogue offers three models of ozone cabinets or cabins to disinfect clothes, with three different capacities –313, 626 and 1252 litres–, and all very easy to handle. They have a programmer that indicates the status of the disinfection process by means of LEDs. They can also be converted into a self-service model and are extremely versatile and safe. They have a door locking system that works by means of an electromagnet, together with a safety micro catch to prevent it from opening during the cycle.
The filters are quick to change and do not require extensive maintenance.
It is made of grey or black skinplate, has a robust, double-panelled body and is 100% watertight.

How do our ozone cabinet for disinfecting clothing work?

armario de ozono para desinfectar ropa





In the first phase of the cycle, the items to be disinfected are placed inside the ozone cabinet and the door is locked. At this point the time is selected and the cabinet begins to generate ozone through a Corona system that works with ceramic plates.
Then, in phase two, the ozonation of the inside of the cabinet begins, and all the items are disinfected quickly and completely thanks to the fact that a constant and lasting concentration is achieved throughout the cycle. As if that were not enough, the equipment has an internal air recirculation system, which guarantees a homogeneous distribution at all time.
In the last phase, the ozone is removed, lowering the concentration to non-harmful levels for the user and the door is unlocked. This is achieved by activated carbon filters and no external ventilation is required.

Components:

  1. Ozone generator and fans:
    • Ozone generator: utilizes the Corona System, which is more efficient than UV lamps, to produce ozone up to a concentration of 7 ppm.
    • Fans: ensure air recirculation for even distribution of ozone throughout the cabinet.
  2. User-friendly programmer:
    • LED status indicator: displays the current status of the cycle.
    • Self-service option: can be easily converted to a self-service version.
  3. Automatic door locks:
    • Double electromagnet and safety double switch: prevents the door from being opened during the cycle, ensuring safety.
  4. Accessory shelves and hanging bar:
    • Shelves: two shelves for organizing items.
    • Hanging bar: designed for jackets and similar items.
    • Space optimization: helps in better organization within the cabinet.
  5. Highly efficient filters:
    • Ozone destruction: Filters are designed to destroy ozone after the disinfection cycle.
    • Easy replacement: Front opening allows easy filter replacement after 2,000 cycles or one year.

Accessories and options:

  1. Coiner kit:
    • Easy installation: Allows installation of a coiner or a central pay kit for payment purposes.
  2. Extra Shelf:
    • Additional storage: Provides more room for materials inside the cabinet.
  3. Wheels:
    • Mobility: Allows replacing the feet with wheels for easy movement and versatility.

Payment systems:

  1. DOMUS laundry kiosk:
    • Contactless payment: allows payments using cards or smart devices.
    • Two screen sizes: available in 32” and 12.1” models.
    • Internet connectivity: connects via Ethernet and integrates with DOMUSCONNECT for device connectivity.
    • Ticket printing: optional printer in the 32” model.
    • Simple process: 5-step process for equipment selection, payment, and service activation.
  2. Coiner/Token systems:
    • Mechanical/electronic coiner: options for coin or token-based payments.
  3. Pulse and RS-485 protocols:
    • Pulse: sends signals to a central pay device.
    • RS-485 protocol: allows bidirectional communication with machines, setting different prices for different programs.

Specialists in the development of all types of machines for industrial launderettes

We are experts in the manufacture of machines for industrial launderettes, with three main lines of business: launderette washing machines, coin-operated tumble dryer and laundry ironing machines.

We have always supported the development of the launderette of the future and the vast majority of our equipment is a benchmark in the current market, in terms of process quality, energy efficiency, connectivity and low maintenance care. There is no doubt that, with the manufacture of these cabinets for disinfecting clothes we have taken another step towards optimising and improving all the processes that occur in this type of launderette.

More information about ozone cabinet for disinfecting clothing

Do not hesitate to request all the information you need, as well as request a detailed quote from our sales department. All you have to do is contact us by taking a few seconds to complete the form that you will find by clicking on this link, by calling (+34) 93 888 71 53 or by sending an email to domus@domuslaundry.com. We will respond to you immediately and answer all your questions, offering you a direct, personalised and very professional service, as we do with each of our clients.
